INDUSTRIAL CENTRAL VACUUM



An industrial central vacuum system can be listed in 6 main parts

BLOWERS | SEPARATORS | CONTROL BOX | TUBING SYSTEM | INLET POINTS | CLEANING TOOLS

products-overview-system-STARVAC-romania-central-vacuum-system-industrial
1

BLOWER

2

SEPARATOR

Mechanical or cyclonic

3

CONTROL BOX

Can be a simple electric control box or include other sensors.

4

TUBING SYSTEM

Generally in metal, but also available in PVC.

5

INLET POINTS

From classical inlet valves to hose reels or other orifices.

6

CLEANING TOOLS

The vacuum accessories, flexible hoses and brushes.

products-tubing-system-overview-system-STARVAC-romania-central-vacuum-system-industrial
tubing-system-icon-STARVAC-romania-central-vacuum-system-industrial

TUBING
SYSTEM

METAL tubing system

The steel piping system consists mainly of 6 different diameters. It is specially designed for high airflow and for central vacuum systems.

All our piping system is made of high quality steel which is galvanized, which gives it the ability to be installed also outdoor.

steel pipe Starvac

STEEL PIPE

ZINC COATED

CODE

ZCP050

ZCP080

ZCP100

ZCP125

ZCP150

ZCP200

DIAMETER

Ø 50

Ø 76

Ø 102

Ø 125

Ø 154

Ø 200

LENGTH

3-6 m

3-6 m

3-6 m

3-6 m

3-6 m

3-6 m

THICKNESS

1,2 mm

1,2 mm

1,2 mm

1,2 mm

1,2 mm

1,2 mm

ell 45 zinc Starvac

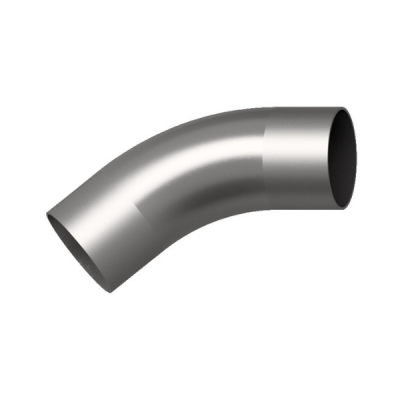

ELL 45°

ZINC COATED

CODE

ZCE405

ZCE407

ZCE410

ZCE412

ZCE415

ZCE420

DIAMETER

Ø 50

Ø 76

Ø 102

Ø 125

Ø 150

Ø 200

LENGTH

-

-

-

-

-

-

THICKNESS

1,5 mm

1,5 mm

1,5 mm

2 mm

2 mm

2 mm

ell 90 zinc Starvac

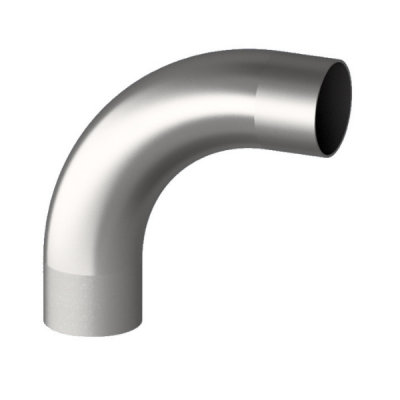

ELL 90°

ZINC COATED

CODE

ZCE950

ZCE980

ZCE910

ZCE912

ZCE915

ZCE920

DIAMETER

Ø 50

Ø 76

Ø 102

Ø 125

Ø 150

Ø 200

LENGTH

-

-

-

-

-

-

THICKNESS

1,5 mm

1,5 mm

2 mm

2 mm

2 mm

2 mm

tee 45 zinc Starvac

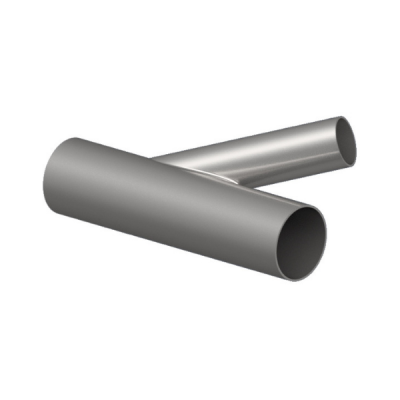

TEE 45°

ZINC COATED

CODE

ZCT005

ZCT007

ZCT010

ZCT012

ZCT015

ZCT020

DIAMETER

Ø 50/50

Ø 76/76

Ø 100/100

Ø 125/125

Ø 150/150

Ø 200/200

LENGTH

-

-

-

-

-

-

THICKNESS

2 mm

2 mm

2 mm

2 mm

2 mm

2 mm

reduction tee 45 Starvac

REDUCTION
TEE 45°

ZINC COATED

CODE

ZCR805

ZCR108

ZCR105

ZCR121

ZCR151

ZCR201

DIAMETER

Ø 76/50

Ø 100/76

Ø 100/50

Ø 125/100

Ø 150/102

Ø 200/150

LENGTH

-

-

-

-

-

-

THICKNESS

2 mm

2 mm

2 mm

2 mm

2 mm

2 mm

reduction tee 90 zinc Starvac

REDUCTION
TEE 90°

ZINC COATED

CODE

ZCR795

ZCR197

ZCR195

ZCR290

DIAMETER

Ø 76/50

Ø 100/76

Ø 100/50

Ø 125/100

LENGTH

-

-

-

-

THICKNESS

2 mm

2 mm

2 mm

2 mm

cone reduction zinc Starvac

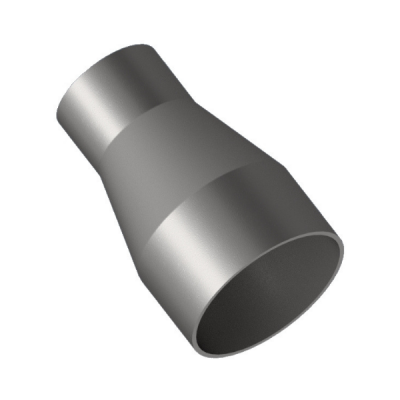

CONE
REDUCTION

ZINC COATED

CODE

ZCC705

ZCC107

ZCC210

ZCC512

ZCC215

DIAMETER

Ø 76/50

Ø 100/76

Ø 125/100

Ø 150/125

Ø 200/150

LENGTH

-

-

-

-

-

THICKNESS

-

-

-

-

-

fork zinc Starvac

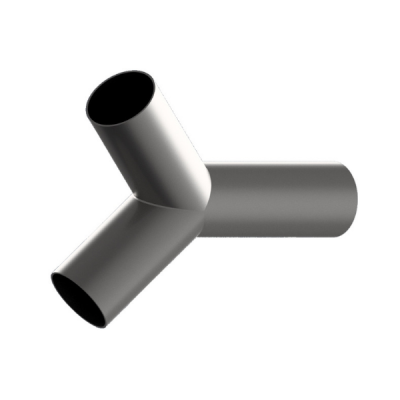

FORK

ZINC COATED

CODE

ZCY100

ZCY125

ZCY150

ZCY200

DIAMETER

Ø 100

Ø 125

Ø 150

Ø 200

LENGTH

-

-

-

-

THICKNESS

2 mm

2 mm

2 mm

2 mm

compression coupling Starvac

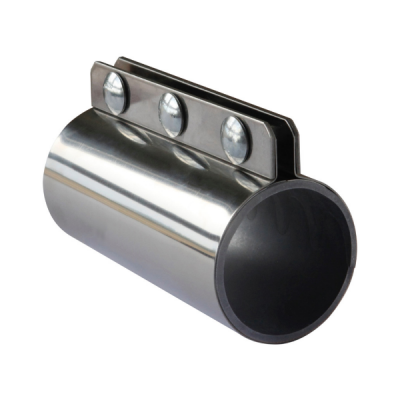

CC

INOX

CODE

CCF050

CCF075

CCF100

CCF125

CCF150

CCF200

DIAMETER

Ø 50

Ø 76

Ø 102

Ø 125

Ø 150

Ø 200

LENGTH

-

-

-

-

-

-

THICKNESS

-

-

-

-

-

-

PVC tubing system

Our PVC piping system consists mainly of 7 different diameters. It is specially designed for high airflow and high vacuum.

For light industrial application PVC is an economical solution to the metal piping system, but it is less resistant to abrasive materials than metal.

pipe pvc Starvac

PIPE

PVC

CODE

PVP050

PVC063

PVP080

PVP100

PVP125

PVP150

PVP200

DIAMETER

Ø 50

Ø 63

Ø 80

Ø 100

Ø 125

Ø 150

Ø 200

LENGTH

2 m

2 m

2 m

2 m

2 m

2 m

2 m

THICKNESS

2 mm

2 mm

3 mm

3 mm

3 mm

3 mm

3 mm

ell 45 Starvac

ELL 45°

PVC

CODE

PVF405

PVF406

PVF407

PVF410

PVF412

PVF415

PVF420

DIAMETER

Ø 50

Ø 63

Ø 76

Ø 102

Ø 125

Ø 150

Ø 200

THICKNESS

2 mm

3 mm

3 mm

3 mm

3 mm

3 mm

3 mm

TYPE

F/F

F/F

F/F

F/F

F/F

F/F

F/F

ell 45 Starvac

ELL 45°

PVC

CODE

PVM405

PVM406

PVM407

PVM410

PVM412

PVM415

PVM420

DIAMETER

Ø 50

Ø 63

Ø 76

Ø 102

Ø 125

Ø 150

Ø 200

THICKNESS

2 mm

3 mm

3 mm

3 mm

3 mm

3 mm

3 mm

TYPE

M/F

M/F

M/F

M/F

M/F

M/F

M/F

tee 45 Starvac

TEE 45°

PVC

CODE

PVT405

PVT406

PVT408

PVT410

PVT412

PVT415

PVT420

DIAMETER

Ø 50

Ø 63

Ø 80

Ø 100

Ø 125

Ø 150

Ø 200

LENGTH

-

-

-

-

-

-

-

THICKNESS

2 mm

2 mm

3 mm

3 mm

3 mm

3 mm

3 mm

tee 90 Starvac

TEE 90°

PVC

CODE

PVT905

PVT906

PVT908

PVT910

PVT912

PVT915

PVT920

DIAMETER

Ø 50

Ø 63

Ø 80

Ø 100

Ø 125

Ø 150

Ø 200

LENGTH

-

-

-

-

-

-

-

THICKNESS

2 mm

3 mm

3 mm

3 mm

3 mm

3 mm

3 mm

reduction pvc Starvac

REDUCTION

PVC

CODE

PVR635

PVR806

PVR108

PVR210

PVR512

PVR215

DIAMETER

Ø 63/50

Ø 80/63

Ø 100/80

Ø 125/100

Ø 150/125

Ø 200/150

LENGTH

-

-

-

-

-

-

THICKNESS

-

-

-

-

-

-

coupling Starvac

COUPLING

PVC

CODE

PVC050

PVC063

PVC080

PVC100

PVC125

PVC150

PVC200

DIAMETER

Ø 50

Ø 63

Ø 80

Ø 100

Ø 125

Ø 150

Ø 200

LENGTH

-

-

-

-

-

-

-

THICKNESS

2 mm

3 mm

3 mm

3 mm

3 mm

3 mm

3 mm

CERTIFICATIONS

Starvac company is certificated ISO 9001 and can achieve on the whole central vacuum system an ATEX Z22 standard.

certificated-ISO9001-STARVAC-romania-central-vacuum-system-industrial

Certificate of Conformity n. Q-2898-20
to ISO 9001:2015 standard

certificated-ATEX-Z22-STARVAC-romania-central-vacuum-system-industrial

ATEX version Z22
Risk-free in case of organic dust
