INDUSTRIAL CENTRAL VACUUM



An industrial central vacuum system can be listed in 6 main parts

BLOWERS | SEPARATORS | CONTROL BOX | TUBING SYSTEM | INLET POINTS | CLEANING TOOLS

products-overview-system-STARVAC-romania-central-vacuum-system-industrial
1

BLOWER

2

SEPARATOR

Mechanical or cyclonic

3

CONTROL BOX

Can be a simple electric control box or include other sensors.

4

TUBING SYSTEM

Generally in metal, but also available in PVC.

5

INLET POINTS

From classical inlet valves to hose reels or other orifices.

6

CLEANING TOOLS

The vacuum accessories, flexible hoses and brushes.

products-cleaning-tools-overview-system-STARVAC-romania-central-vacuum-system-industrial
cleaning-tools-icon-STARVAC-romania-central-vacuum-system-industrial

CEANING
TOOLS

flexible hose Starvac

Crush-proof flexible hose with rubber fittings

DESCRIPTION

Ideal for the suction of all dust, debris and abrasive materials. With hard rubber cuffs. Surface inside quite smooth, excellent flexibility, color black.

Pressure resistance: 500 mbar
Temperature range: -30C° +60C°

40mm - 7,5 meter | FXC407
50mm - 7,5 meter | FXC507
40mm - 10 meter | FXC410
50mm - 10 meter | FXC510
40mm - 7,5m, conductive | FXA407
50mm - 7,5m, conductive | FXA507
40mm - 10m, conductive | FXA410
50mm - 10m, conductive | FXA510

hose flexible Starvac

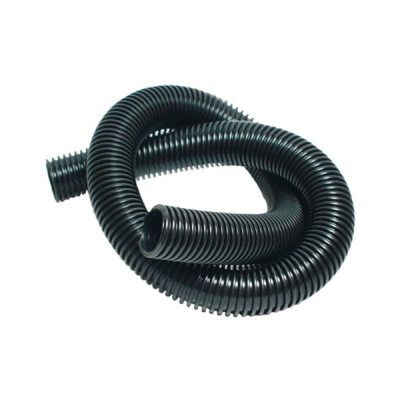

Crush-proof flexible hose

DESCRIPTION

Ideal for the suction of all dust, debris and abrasive materials. Surface inside quite smooth, excellent flexibility, color black.

Pressure resistance: 500 mbar
Temperature range: -30C° +60C°

Flexible hose 40mm - the meter | FXC401
Flexible hose 50mm - the meter | FXC501
Flexible hose conductive 40mm - the meter | FXA401
Flexible hose conductive 50mm - the meter | FXA501

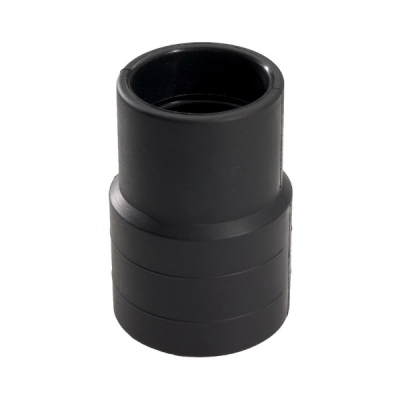

rubber fitting Starvac

Rubber fitting

DESCRIPTION

In durable rubber, mounted on the suction hose.

Total length: 110mm
Weight: 90g

Ø 32mm | ARF030
Ø 40mm | ARF040
Ø 50mm | ARF050
360° revolving rubber cuff Ø 40mm | ARF041
Ø 32mm conductive | ARF031
Ø 40mm conductive | ARF041
Ø 50mm conductive | ARF051

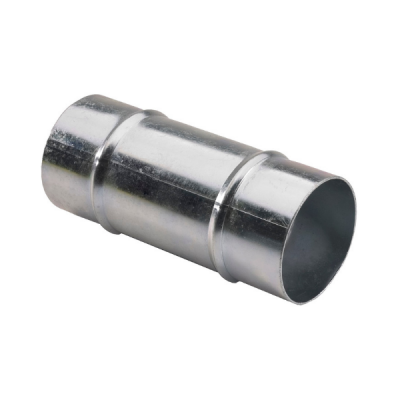

metal fitting Starvac

Metal fitting

DESCRIPTION

In metal, mounted between the rubber fitting and the tools ARC, ACT, AST, ACC.

Total length: 130mm
Weight: 80g

Ø 32mm | AMF030
Ø 40mm | AMF040
Ø 50mm | AMF050

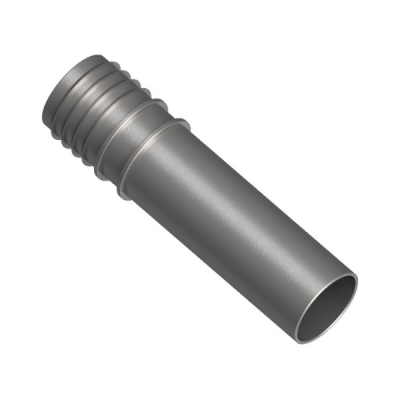

coupling metal Starvac

Metal coupling for metal inlet valve

DESCRIPTION

Used to connect the metal inlet valve MEV050 with the flexible hose. Made of zinc coated steel.

Total length: 200mm
Weight: 150g

Ø 32mm | AMC030
Ø 40mm | AMC040
Ø 50mm | AMC050

s shape wand premium Starvac

S–Shaped connection wand Premium

DESCRIPTION

Professional chromate steel or aluminum S-shaped handle fitted with a quick coupling. Used to connect the suction hose with a floor brush.

Total height: 95mm
Weight: 1.750g

Chromate steel Ø 40mm | ASW040
Chromate steel Ø 50mm | ASW050
Aluminium Ø 40mm | ASW041
Aluminium Ø 50mm | ASW051

s shape wand standard Starvac

S–Shaped connection wand Standard

DESCRIPTION

Professional chromate steel or aluminum S-shaped handle fitted with a quick coupling. Used to connect the suction hose with a floor brush.

Total height: 93mm
Weight: 1.250g

Ø 40mm | ASW042
Ø 50mm | ASW052

technical brush premium Starvac

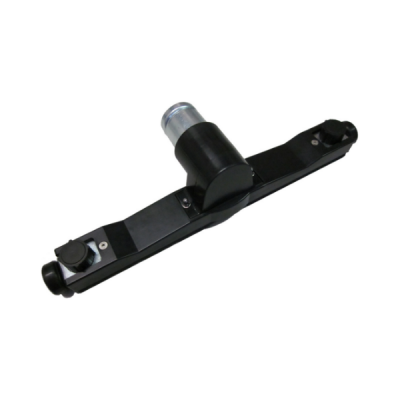

Technical floor brush Premium

DESCRIPTION

Steel floor brush with adjustable wheels, for industrial dust & debris on technical floors. With rubber casing to prevent damage to the brush and to the furniture.
With a quick fix coupling.
To be connected with ASW..0 & ASW..1

Brush width: 400mm
Weight: 460g

400mm / Ø 40mm | AFB440
400mm / Ø 50mm | AFB450

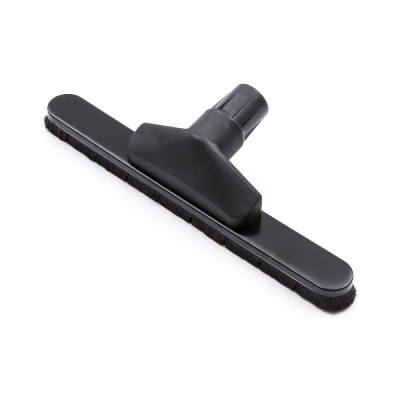

technical brush standard Starvac

Tecnical floor brush Standard

DESCRIPTION

Ideal for industrial dust & debris on technical floors.
Light weight.
To be connected with ASW0.2

Brush width: 400mm
Attachment diameter: Ø 40mm
Weight: 340g

400mm / Ø 40mm | AFB441
400mm / Ø 50mm | AFB451

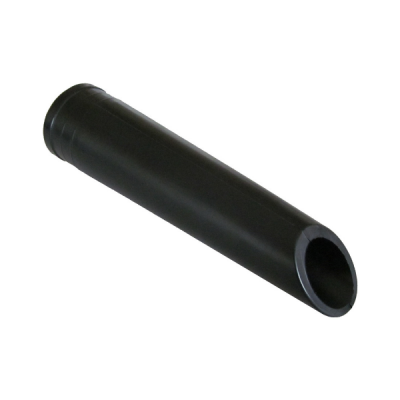

rubber cone Starvac

Rubber cone with end cutted 45°

DESCRIPTION

For suction of chips hand cleaning on machines. Made of a special high resistance rubber. The all-rounder cleaning tool.
Made of special conductive antistatic rubber.

Cone length: 200mm
Weight: 140g

Ø 40mm | ARC040
Ø 50mm | ARC050
Ø 40mm in silicone | ARC041
Ø 50mm in silicone | ARC051

To be used with AMF040 / AMF050

round dusting brush Starvac

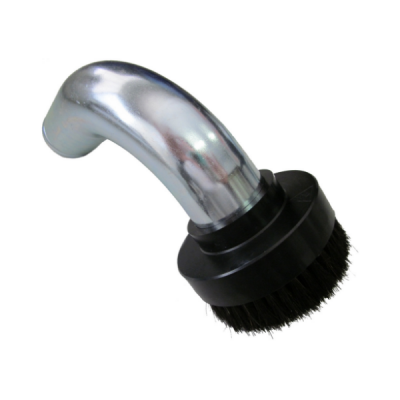

Round dusting brush with 90° bend

DESCRIPTION

With polyester hair. For delicate surfaces and persistent dust. With zinc coated steel bend.

Brush diameter: 100mm
Weight: 260g

Ø 40mm | ARB040
Ø 50mm | ARB050

flat crevice Starvac

Flat crevice tool

DESCRIPTION

In hard rubber, for all kind of surfaces, specially designed to clean areas difficult to reach.
Made of special conductive antistatic rubber.

Total length: 300mm
Weight: 180g

Ø 40mm | ACT040
Ø 50mm | ACT050

To be used with AMF040 / AMF050.

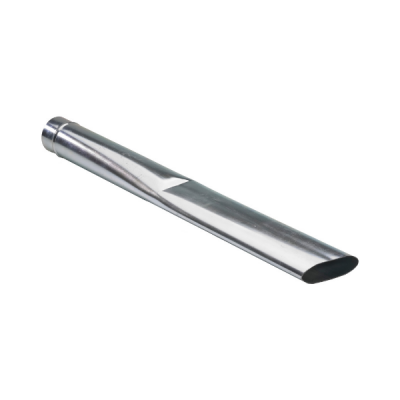

crevice metal Starvac

Crevice tool

DESCRIPTION

Available in zinc coated steel or in stainless steel.
Designed to clean surfaces which are difficult to reach.

Total length: 300mm
Weight: 190g

Zinc coated steel Ø 40mm | ACT041
Zinc coated steel Ø 50mm | ACT051
Stainless steel Ø 40mm | ACT042
Stainless steel Ø 50mm | ACT052

scraping tool Starvac

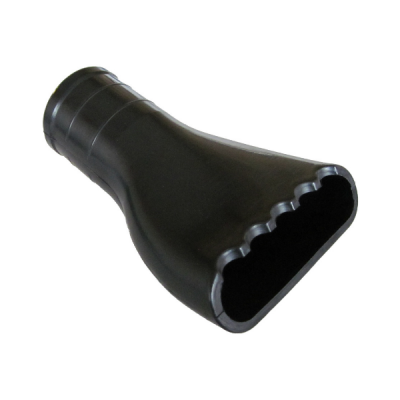

Scraping tool

DESCRIPTION

In rubber, for all kind of surfaces, specially designed to clean persistent dust and wet surfaces.
Made of a special conductive, antistatic and high resistance rubber.

Total length: 175mm
Inlet width: 125mm
Weight: 120g

Ø 40mm | AST040
Ø 50mm | AST050

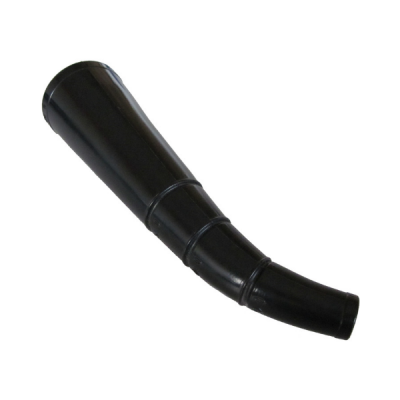

curved cone tool Starvac

Curved cone tool

DESCRIPTION

For suction of small chips in extremely hard to reach areas.
Made of a special conductive, antistatic and high resistance rubber.

Cone length: 300mm
Weight: 170g

Ø 40mm | ACC040
Ø 50mm | ACC050

To be used with AMF040 / AMF050

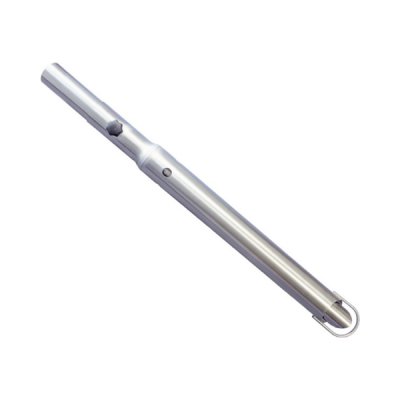

suction lance Starvac

Suction lance

DESCRIPTION

For suction of small chips and granulate in extremely hard to reach areas. Available in stainless steel and aluminium.

Lance length: 1.000mm
Weight: 3250g

Aluminium Ø 40mm | ASL040
Aluminium Ø 50mm | ASL050
Stainless steel Ø 40mm | ASL041
Stainless steel Ø 50mm | ASL051

To be used with AMF040 / AMF050.

hose holder Starvac

Hose Holder

DESCRIPTION

Zinc coated wall mounted hose holder for a proper suction-hose storage including wand and accessories holder.

Weigth: 340g

Hose holder zinc coated | HHT001

CERTIFICATIONS

Starvac company is certificated ISO 9001 and can achieve on the whole central vacuum system an ATEX Z22 standard.

certificated-ISO9001-STARVAC-romania-central-vacuum-system-industrial

Certificate of Conformity n. Q-2898-20
to ISO 9001:2015 standard

certificated-ATEX-Z22-STARVAC-romania-central-vacuum-system-industrial

ATEX version Z22
Risk-free in case of organic dust
